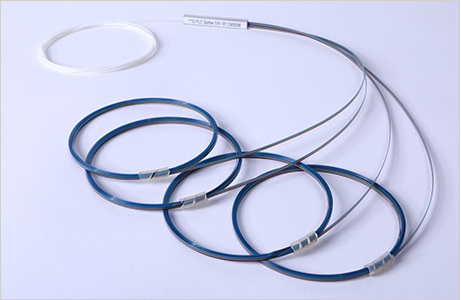

RIBBON TYPE PLC SPLITTER
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device to distribute optical signals from Central Office (CO) to multiple premise subscriber locations.
USER GUIDE
USER GUIDE
PRODUCT DETAILS
PRODUCT |
DESCRIPTION |
SPECIFICATION |
DRAWING |
PLC102-A1-RBN-B/10/N-R/10/N |
1x2 PLC Splitter with G.657.A1, Ribbon type
Input : 0.25mm(Bare), 1meter, without Conn.
Output : 2C Ribbon fiber, 1meter, without Conn.
|
|
|
PLC108-A1-RBN-B/10/N-R/10/N
|
1x8 PLC Splitter with G.657.A1, Ribbon type
Input : 0.25mm(Bare), 1meter, without Conn.
Output : 4C Ribbon fiber, 1meter, without Conn.
|
|
|
PRODUCT PLC102-A1-RBN-B/10/N-R/10/N |
DESCRIPTION 1x2 PLC Splitter with G.657.A1, Ribbon type
Input : 0.25mm(Bare), 1meter, without Conn.
Output : 2C Ribbon fiber, 1meter, without Conn. |

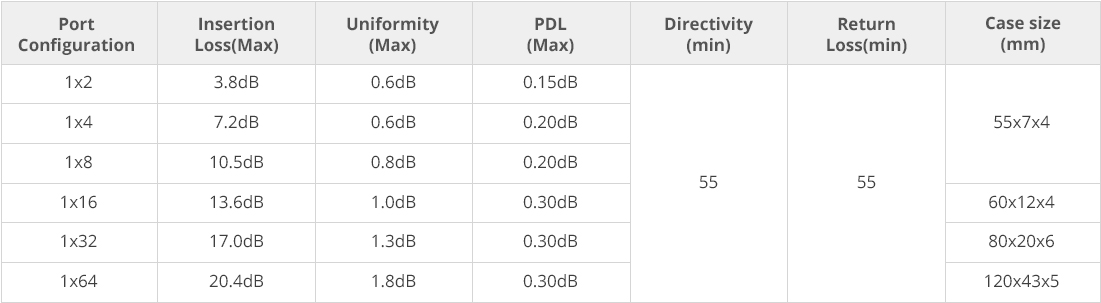

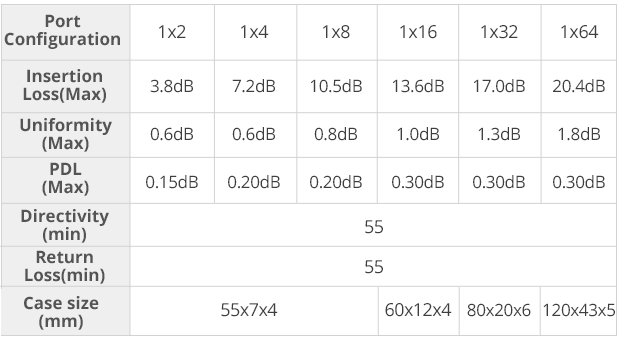

SPECIFICATION
|
DRAWING
|
PRODUCT PLC108-A1-RBN-B/10/N-R/10/N |
DESCRIPTION 1x8 PLC Splitter with G.657.A1, Ribbon type
Input : 0.25mm(Bare), 1meter, without Conn.
Output : 4C Ribbon fiber, 1meter, without Conn. |
SPECIFICATION
|
DRAWING
|

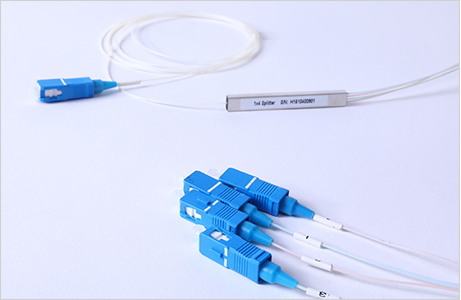

SFF TYPE PLC SPLITTER
SFF(Small Form Factor) type PLC splitter is designed compact size case with 0.9mm loosed tubing at Input & Output and terminated with various types of connecter.
USER GUIDE
USER GUIDE
PRODUCT DETAILS
PRODUCT |
DESCRIPTION |
SPECIFICATION |
DRAWING |
PLC108-A1-SFF-9L/10/SU-9L/10/SU |
1x8 PLC Splitter with G.657.A1, SFF type
Input : 0.9mm Loose tube, 1meter, with SC/UPC
Output : 0.9mm Loose tube, 1meter, with SC/UPC
|
|
|
PLC116-A1-SFF-9L/10/SU-9L/10/SU
|
1x16 PLC Splitter with G.657.A1, SFF type
Input : 0.9mm Loose tube, 1meter, with SC/UPC
Output : 0.9mm Loose tube, 1meter, with SC/UPC
|
|
|
PRODUCT PLC108-A1-SFF-9L/10/SU-9L/10/SU |
DESCRIPTION 1x8 PLC Splitter with G.657.A1, SFF type
Input : 0.9mm Loose tube, 1meter, with SC/UPC
Output : 0.9mm Loose tube, 1meter, with SC/UPC |

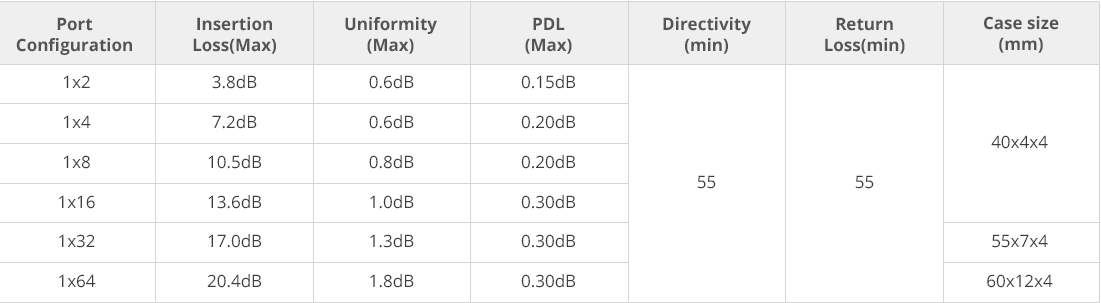

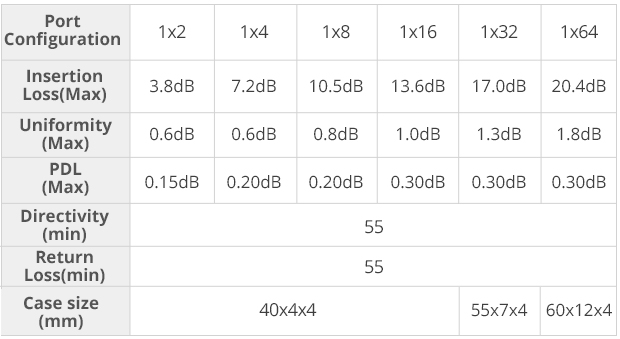

SPECIFICATION
|
DRAWING
|
PRODUCT PLC116-A1-SFF-9L/10/SU-9L/10/SU |
DESCRIPTION 1x16 PLC Splitter with G.657.A1, SFF type
Input : 0.9mm Loose tube, 1meter, with SC/UPC
Output : 0.9mm Loose tube, 1meter, with SC/UPC |
SPECIFICATION
|
DRAWING
|

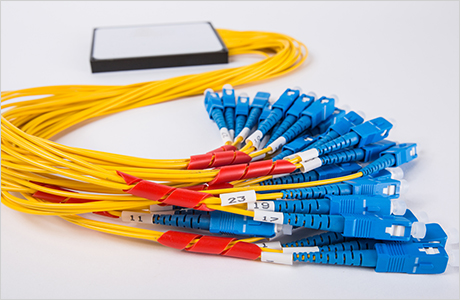

ABS TYPE PLC SPLITTER
ABS type PLC splitter is designed for accommodating with 2.0mm cord on Input & Output and terminated with various types of connecter.
USER GUIDE
USER GUIDE
PRODUCT DETAILS
PRODUCT |
DESCRIPTION |
SPECIFICATION |
DRAWING |
PLC116-A1-ABS-
20/10/SA-20/10/SA |
1x16 PLC Splitter with G.657.A1, ABS type
Input : 2.0mm Loose tube, 1meter, with SC/APC
Output : 2.0mm Loose tube, 1meter, with SC/APC
|
|
|
PLC132-A1-ABS-
20/10/SA-20/10/SA
|
1x32 PLC Splitter with G.657.A1, ABS type
Input : 2.0mm Loose tube, 1meter, with SC/APC
Output : 2.0mm Loose tube, 1meter, with SC/APC
|
|
|
PRODUCT PLC116-A1-ABS-
20/10/SA-20/10/SA |
DESCRIPTION 1x16 PLC Splitter with G.657.A1, ABS type
Input : 2.0mm Loose tube, 1meter, with SC/APC
Output : 2.0mm Loose tube, 1meter, with SC/APC |

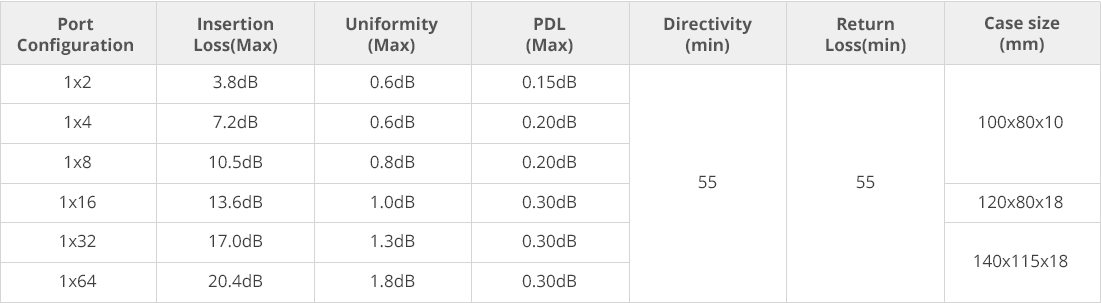

SPECIFICATION
|
DRAWING
|
PRODUCT PLC132-A1-ABS-
20/10/SA-20/10/SA
|
DESCRIPTION 1x32 PLC Splitter with G.657.A1, ABS type
Input : 2.0mm Loose tube, 1meter, with SC/APC
Output : 2.0mm Loose tube, 1meter, with SC/APC |
SPECIFICATION
|
DRAWING
|
